홈 /제품 소개/빛 도파로 아크릴 시트/Modern DC12V24V Customized 6mm Light Guide Panel, Led Light Guide Plate, Acrylic Pmma Sheet For Shelf Back Lighting

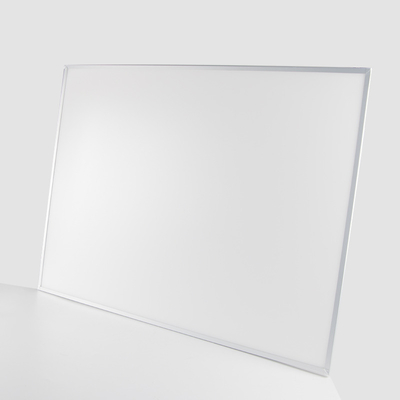

Modern DC12V24V Customized 6mm Light Guide Panel, Led Light Guide Plate, Acrylic Pmma Sheet For Shelf Back Lighting

1 piece
MOQ
$41.80(1 - 50 pieces) $39.80(>=51 pieces)
가격
Modern DC12V24V Customized 6mm Light Guide Panel, Led Light Guide Plate, Acrylic Pmma Sheet For Shelf Back Lighting
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Color Temperature(CCT): 6000K (Daylight Alert)
Lamp Luminous Efficiency(lm/w): 90
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, CNC service
Application: Mall
Design Style: Modern
Lifespan (hours): 50000
Working Time (hours): 30000
Product Weight（kg）: 3
Input Voltage(V): 12V/24V
Working Temperature(℃): 1 - 45
Lamp Body Material: Aluminum + Acrylic + LED
IP Rating: Ip33
Model Number: SBLP-A1
Light Source: LED
Warranty(Year): 3-Year
Size: 841x594x5.5mm
기본 정보
Model Number: SBLP-A1
결제 및 배송 조건
Packaging Details: Wooden case
Supply Ability: 5000 Piece/Pieces per Week
제품 설명
Product Description
Used with Osram LED and Mitsubish PMMA which insure light output upto 90lm/w
Thickness from 5.5mm-10mm to fit different kind of shelf.
CNC service, big size also available
Product Paramenters
Item#
Profile CH004 (mm)
Size (mm)
Power Consumption (Watt.)
Diffuser
Weight (KG)
SBLP-A0
5.5
1189x841
34
No
6
SBLP-A1
5.5
841x594
25
No
3
SBLP-A2
5.5
594x420
18
No
1.5
SBLP-A3
5.5
420x297
13
No
0.8
SBLP-A4
5.5
297x210
9
No
0.6
Diffuser Options
Aluminum Frame Options
LED's amount is depends on the size or your requirement
Our Production
Cutting
Laser spotting
Assembling
Testing
Aging
CNC Service (Big size also available)
Customer Photos
Related Products
Certificate
Certificate: CE
Certification No. O00.01.0289E
Certificate: CE
Certification No. O00.01.0289E
Certificate: GB/T 19001-2016/ISO 9001:2015
Certification No.:19522Q38031R0S
Date of Expiry: Jan. 5th, 2025
Company Introduction
United LED lighting was established in 2012. It’s a manufacturer of LED lighting, design customization, production and sales. focus on shelf lighting system, LED Shelf Liner Lights, DC POWER TRACK, LED Light Box, LED Back lite Panel Lights, LED Shelf Talker brand lights and other series of supermarket lighting.
Office
Factory
Packing&Shipping

FAQ


Q: Can you make customized size ?
A: Any size upto 2000*1000mm

Q: How fast you can make delivery ?
A: Sample avaiable in 5-7 days Mass order lead time 14-20 days

Q: Can you do White frame?
A: Frame color avaible in Silver, Black, White and others

Q: What is your warranty?
A: The warranty is 3 years
